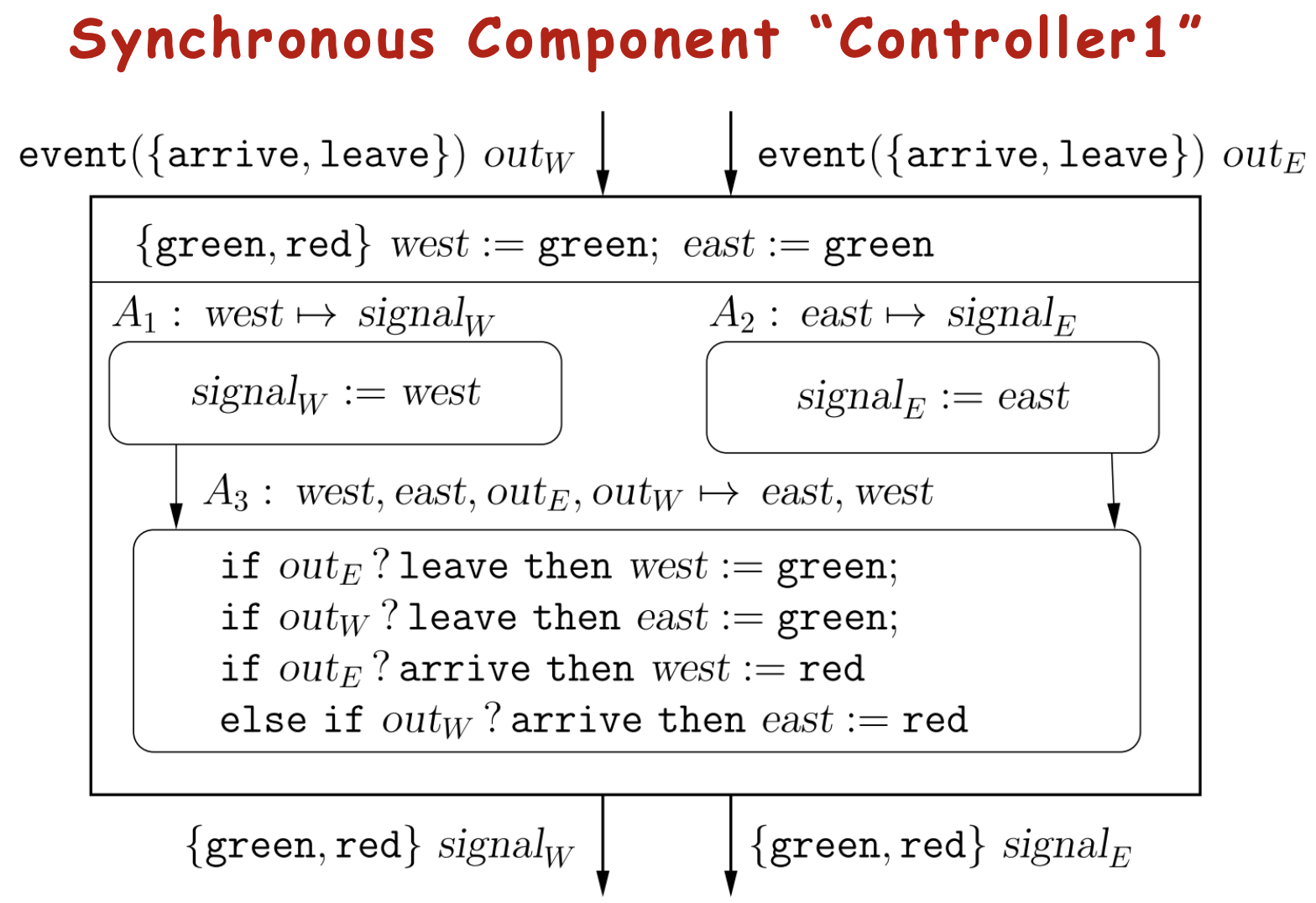

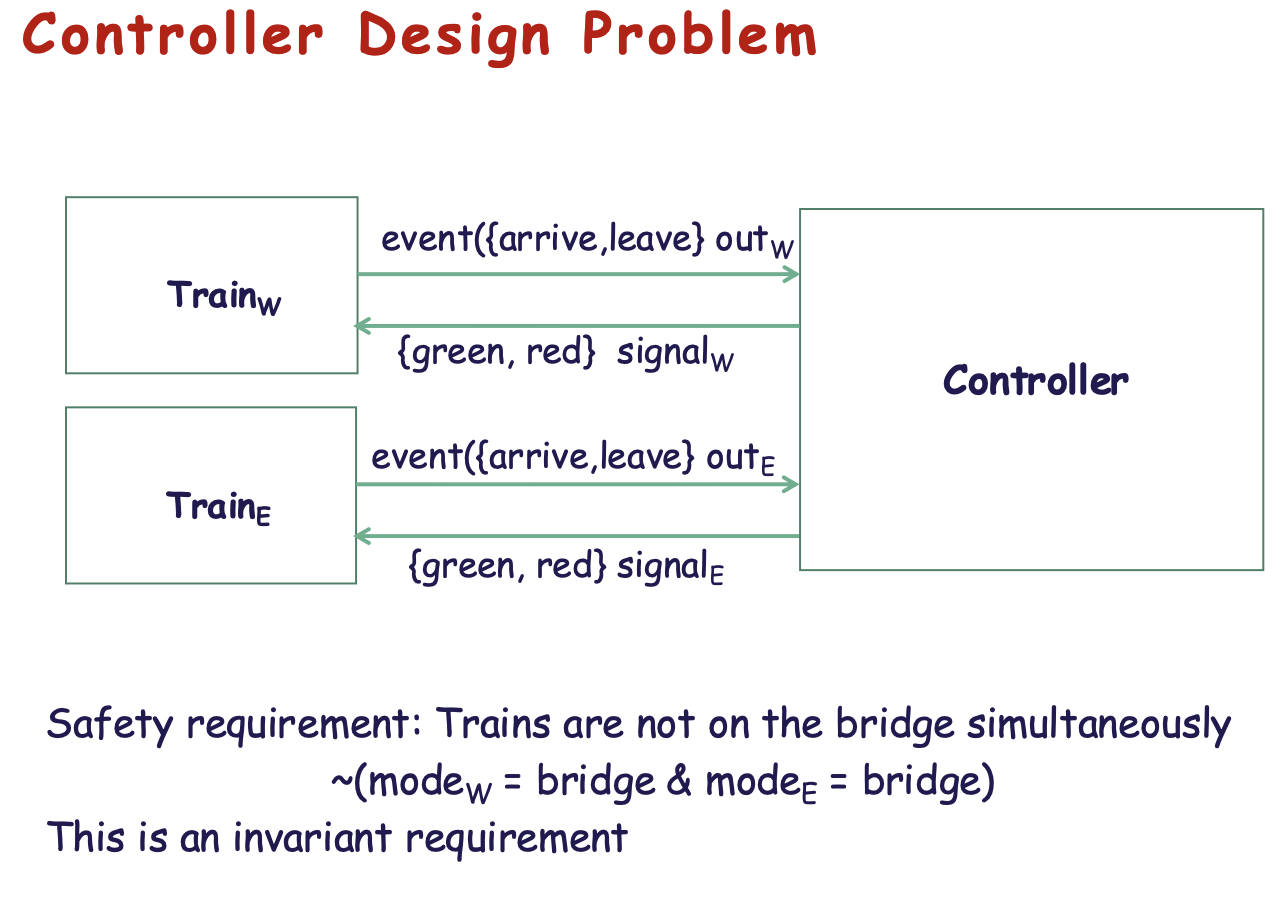

- We study requirements-based controller design.
- We define safety monitors to express general safety properties.
- We analyze the computational complexity of the invariant verification problem.
- We study a symbolic search algorithm for the invariant verification problem.

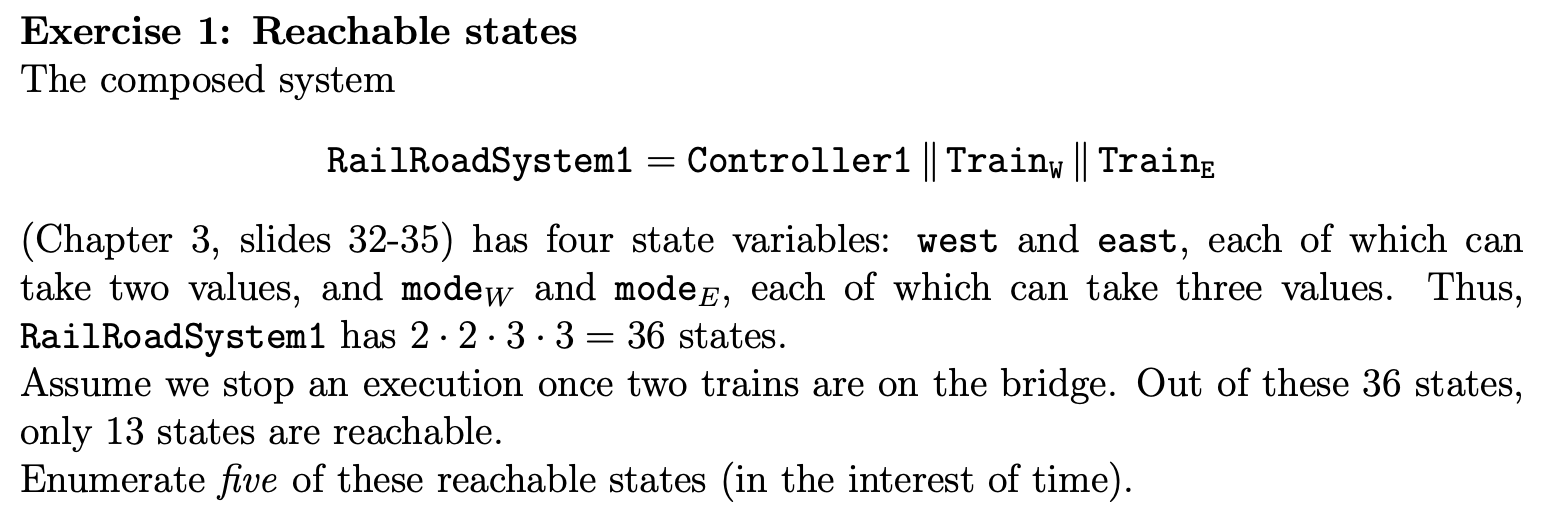

Exercise 1

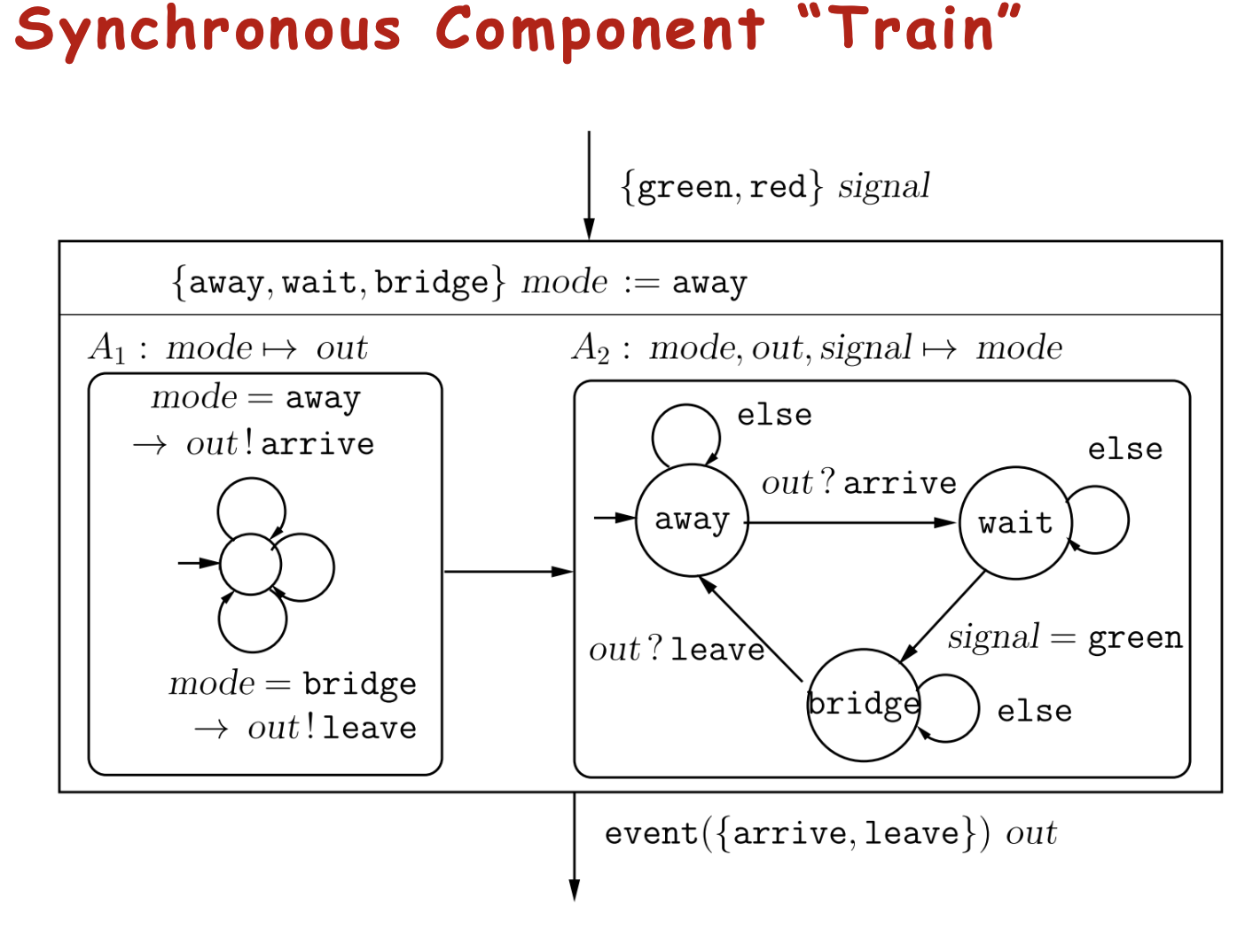

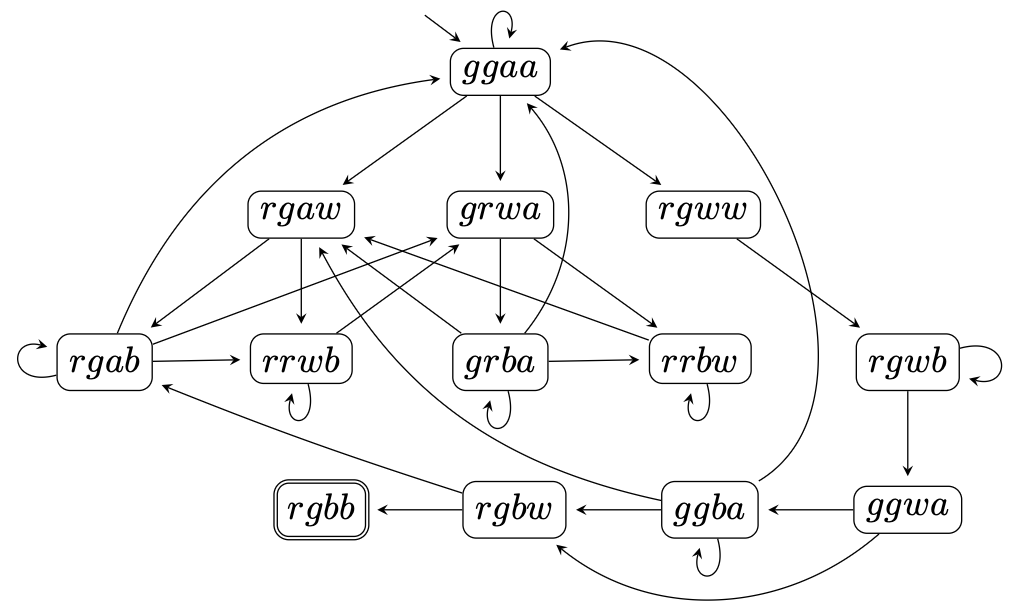

Signal West = g Signal East = g Train West = a Train East = a
Signal West = r Signal East = g Train West = a Train East = b
Signal West = r Signal East = r Train West = w Train East = b
Signal West = r Signal East = r Train West = w Train East = b
Signal West = g Signal East = r Train West = w Train East = a
Signal West = g Signal East = r Train West = b Train East = a

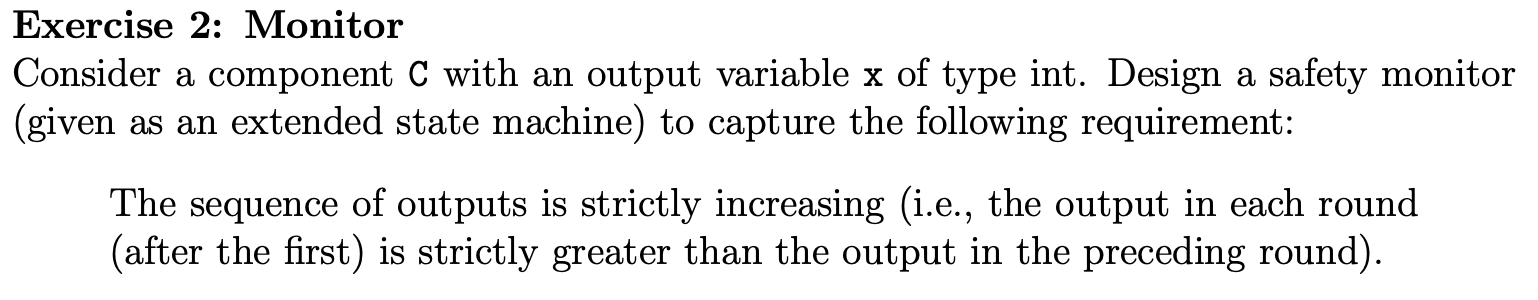

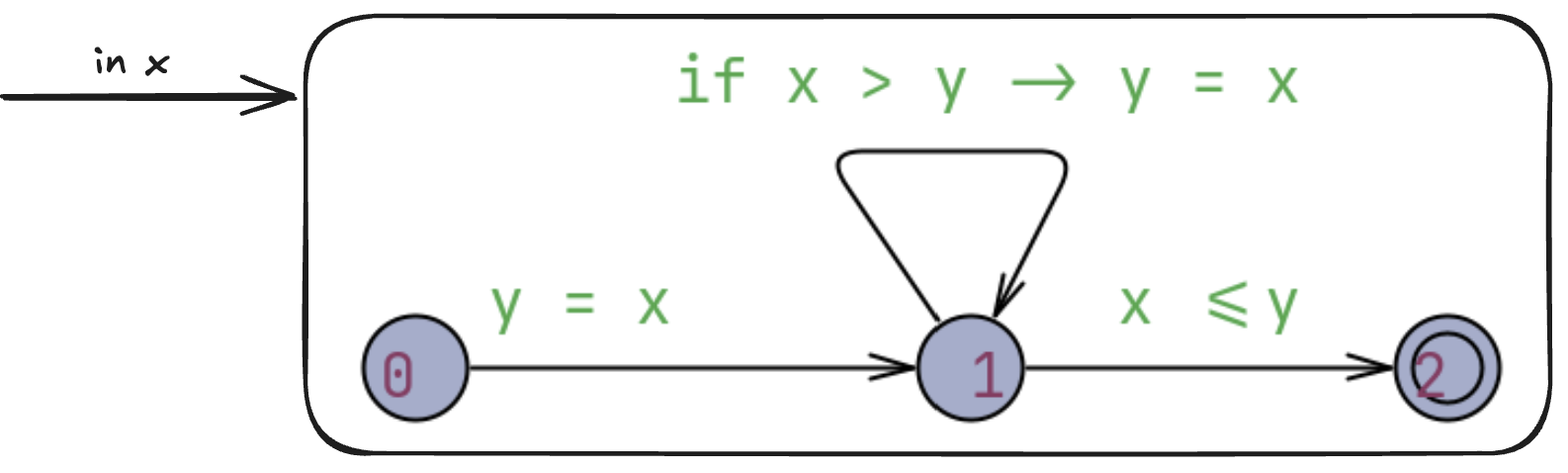

Exercise 2

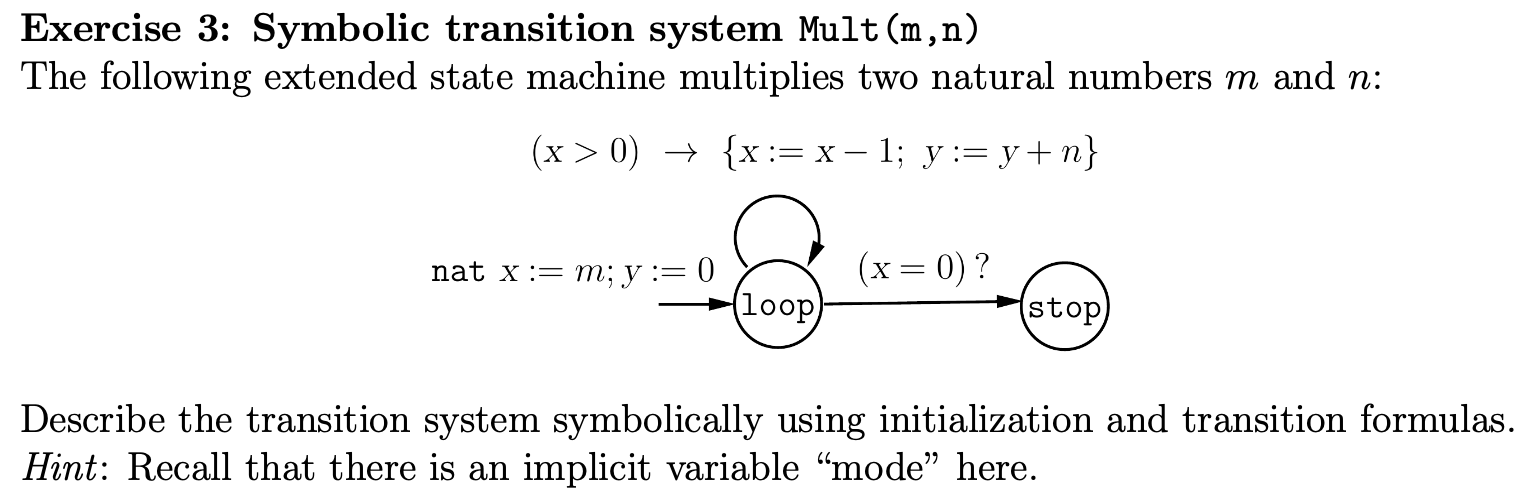

Exercise 3
Init x = m ∧ y = 0 mode = Loop
(mode = Loop ∧ x > 0 ∧ x’ = x - 1 ∧ y’ = y + n ∧ mode’ = loop) ∨ (mode = Loop ∧ x = 0 ∧ x’ = x ∧ y’ = y ∧ mode’ = stop)
So what’s going on here is actually pretty simple.
more to be found at State machine to Symbolic language

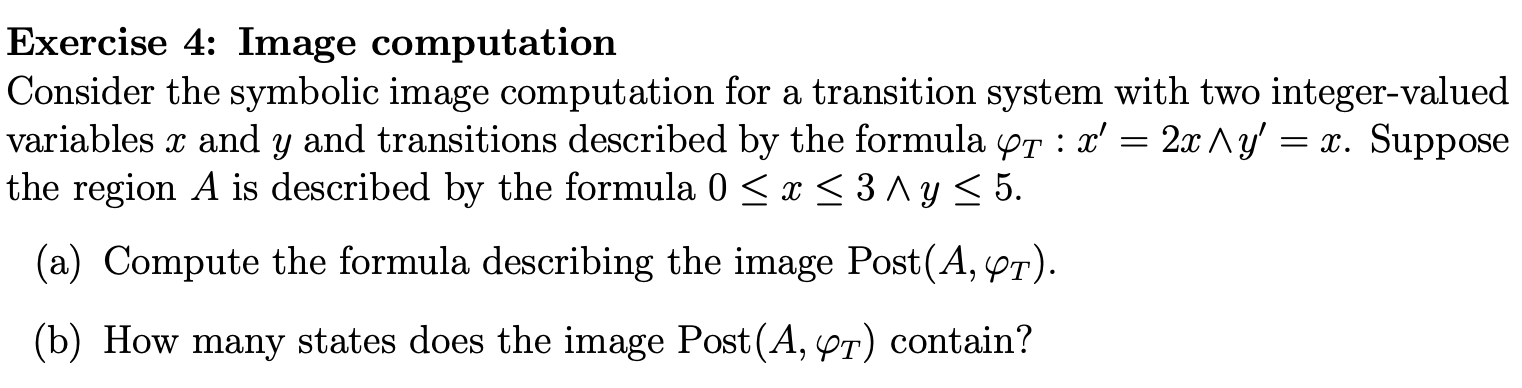

Exercise 4
A)
B)
